Layout of drying zone:
swimming pool water and indoor air
Auxiliary equipment:
air ducts, fan, water pump, heat exchangers, cooling towers, etc.
｜Swimming Pool Heat Pump
Constant Temperature and Humidity System for Swimming Pool
The swimming pool constant temperature and humidity system is an innovative application of the dehumidification heat pump in the indoor swimming pool field. It integrates dehumidification, cooling, heating and ventilation into one, which can maintain indoor air quality and swimming pool water within the comfortable zone of human body.

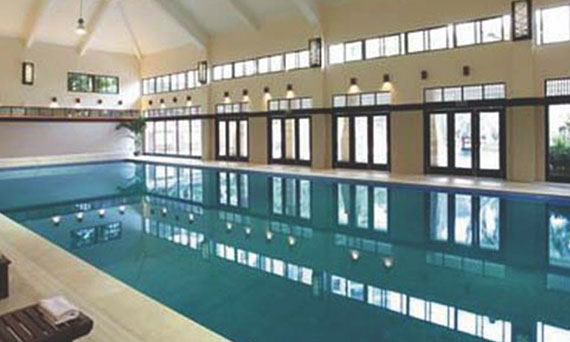

Applications: indoor Air and swimming pool water
Operation Mode: continuous
Functions: 3-in-1 set of boiler, central air conditioning, ventilation
High-quality indoor swimming pool emerges to faciliate swimming in all-weather. When it is cold, it is necessary to heat the water of swimming pool while keeping the indoor air warm but not humid; when it is hot, need to keep the indoor air cool; when it is not hot or cold, keep the air fresh. Traditional solution is to achieve these objects individually by different systems like heating system to heat the water, air conditioning system to cool the air, ventilation system to fresh the air.
GreenteQ adopts dehumidification heat pump technology to realize three functions in one system. Our innovative technology of independent control of air humidity and temperature sets the industry benchmark; ventilation function fully ensures the indoor air quality; energy recovery devices, which can recover exhaust heat in winter and exhaust cold in summer, save operating costs tremendously. Welcome to contact us for details!
3 basic types in terms of dehumidification weight, i.e., 15、25、30kg/hr, among of which Type 25kg/hr derives 4 sub-models and 30kg/hr derives 5 sub-models. There are 10 sub-models in total.
|
Model |
|
TH-15FL-N |
TH-25FL-N |
TH-30FL-N |
|
|
Modular Number N |
- |
1 |
1~4 |
1~5 |
|
|
Dehumidification weight under standard condition (Indoor air 29℃，water28℃，60%R.H)(excluding moisture discharge of fresh air) |
kg/h |
15 |
25 x N |
30 x N |
|
|
Standard air flow |
m3/h |
3000 |
5000 x N |
6000 x N |
|
|
Fresh air flow |
m3/h |
0 |
0 (N=1) |
0 (N=1) |
|
|
0~5000(N=2-3) |
0~6000(N=2-3) |
||||
|
0~10000(N=4) |
0~12000(N=4-5) |
||||
|
Cooling output under standard condition (compressor) |
kW |
14.5 |
24.2 x N |
29 x N |
|
|
Indoor 26℃，55%R.H，Outdoor 32℃ |
|||||
|
Total cooling power |
kW |
25 |
41.7 x N |
50 x N |
|
|
Total heating power |
kW |
30 |
48 x N |
58 x N |
|
|
Air heating power under standard heating condition |
kW |
18 |
30 x N |
36 x N |
|
|
water heating power/ air heating power under standard dehumidification condition (Indoor 29℃，60%R.H，water28℃) |
kW |
11.6 |
19.4 x N |
23.2 x N |
|
|
kW |
6.3 |
10.5 x N |
12.6 x N |
||
|
Refrigerant |
- |
R407C |
R407C |
R407C |
|
|
Compressor quantity |
- |
1 |
N |
N |
|
|
Compressor input power under standard dehumidification condition |
kW |
3.44 |
5.74 x N |
6.88 x N |
|
|
Blower |
Blower power |
kW |
2.2 |
4 x N |
4 x N |
|
Blower pressure |
Pa |
800 |
850(N=1) |
900 |
|
|
900(N>1) |
|||||
|
Booster blower |
Booster blower power |
kW |
- |
-（N=1) |
-（N=1) |
|
5#/1.1 (N=2) |
6#/1.5 (N=2) |
||||
|
7#/1.5 (N=3) |
7#/2.2 (N=3) |
||||
|
7#/3.0 (N=4) |
8#/4.0 (N=4) |
||||
|
|
8#/5.5 (N=5) |
||||
|
Power specs |
V |
380V/3H/50Hz |
380V/3H/50Hz |
380V/3H/50Hz |
|
|
Weight of main unit |
kg |
330 |
420（N=1) |
480（N=1) |
|
|
780 (N=2) |
950 (N=2) |
||||
|
1170 (N=3) |
1750 (N=3) |
||||
|
2000 (N=4) |
2300 (N=4) |
||||
|
|
2600 (N=5) |
||||
|
Condenser of circulating pool water |
- |
Pipe: Ti + Shell: PVC |
Pipe: Ti + Shell: PVC |
Pipe: Ti + Shell: PVC |
|
|
Circulating pool water volume |
m3/h |
6.5 |
10.9 x N |
13 x N |
|
|
Control system |
- |
PLC+ touch screen |
PLC+ touch screen |
PLC+ touch screen |
|
|
Recommended size of swimming pool |
m2 |
65~80 |
(105~130) x N |
(135~165) x N |
|
